Understanding The Basics Of CSS3

Cascading Style Sheets, commonly known as CSS, has been around for sometime now allowing us to create much more powerful and flexible websites than in the past. Now that CSS has evolved a bit and the acceptance of CSS3 is making its way to our favorite browsers, we can begin to play around with some of the newer features available.

In this article I will focus on some of the more popular features of CSS3, many of which are beginning to make their appearance on several of the websites that I frequently visit. While most of these are only visible in some of the more modern web browsers (Mozilla, Chrome, Safari) it’s important to go ahead and get a grasp of exactly how they work.

Border Radius

Creating rounded corners in web design wasn’t always the easiest of things to accomplish. Yet, thanks to the power of CSS3, it has since become one of the more popular and easier techniques to implement. By taking advantage of the border-radius property, you can easily round off those corners in seconds. Here is a look at both creating equally rounded corners and at targeting the radius of individual corners through the use of CSS3.

Equal Corners

Keep all of those corners symmetrical with just a few short keystrokes.

Rounded Corners CSS3

The Code:

-webkit-border-radius: 10px;
-moz-border-radius: 10px;
border-radius: 10px;

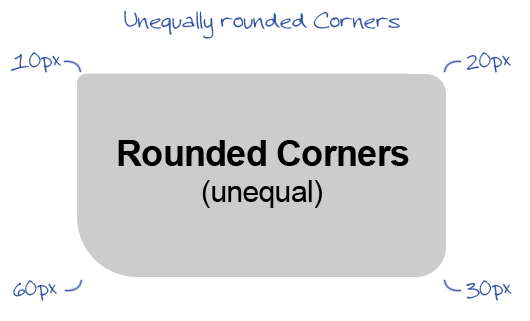

Unequal Corners

Targeting specific corners requires just a bit more code.

Rounded Corners CSS3

The Code:

-webkit-border-radius: 10px 20px 30px 60px;
-moz-border-radius: 10px 20px 30px 60px;
border-radius: 10px 20px 30px 60px;

Box Shadow

Creating box shadows is another pretty cool example for adding some stylish elements to you web designs. The best part being the fact that it is completely executed without the use of images. There are even ways to add multiple box shadows to your rounded corners, allowing for the possibility of creating some very slick designs. Here is the basic use of the box shadow.

Box Shadow CSS3

The Code:

-webkit-box-shadow: 5px 5px 5px #888;
-moz-box-shadow: 5px 5px 5px #888;
box-shadow: 5px 5px 5px #888;

Multiple Background Images

Another cool example of CSS3 is the ability to apply multiple backgrounds to a single DIV without having to create extra child DIV’s whose only purpose is to support an image. Did I explain that very well? Maybe not so much. Let me try and clear that up through the use of an example.

Let’s say that I wanted to add an image to all four corners of a DIV to create some type of an effect. In this quickly thrown together example, let’s say I wanted to add a staple to each corner of the DIV to create the effect that a piece of paper was stapled to my website. By implementing a little CSS3, it becomes a breeze. Let’s take a look at how it is done.

multiple backgrounds css3

As you can see the single image, staple.png, was targeted to each corner of the DIV by simply pointing to the image and describing where it needed to be placed. No more empty DIV’s scattered throughout your HTML which have absolutely nothing to do with the content of the site. I’ve left the paper out of the code example and simply used a background of #eee.

The Code:

background:
     url(images/staple.png) top left no-repeat,
     url(images/staple.png) top right no-repeat,
     url(images/staple.png) bottom left no-repeat,
     url(images/staple.png) bottom right no-repeat;

background-color: #eee;

Text Shadow

You know how easy it is to double click a layer in Photoshop and say hey, I want to add a quick drop shadow to that text? This may be even easier than that. You aren’t just restricted to just one shadow either. By combing multiple text shadows of varying colors, the possibilities are endless.

Warning: expect to see some possibly horrendous text shadows making their way to a web near you sometime in the immediate future. Use this technique with caution.

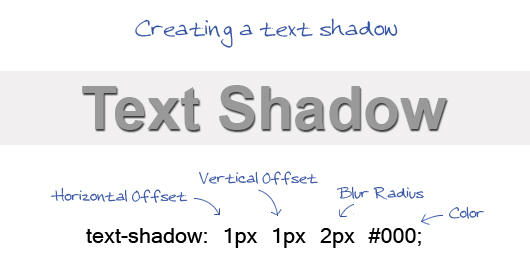

Normal Shadow

Here is how to create a normal single color shadow with a slight blur.

text shadow css3

The Code:

text-shadow: 1px 1px 2px #000;

Letter Press Effect

I’ve been hearing the term letter press effect quite often recently among my daily web travels. I’ve even run across it on several blogs who are already taking full advantage of it. Nothing against it all. The outcome can actually prove quite nice when implemented appropriately with the rest of the design. Here’s a quick example for pulling it off with text shadows.

letter press css3

The Code:

text-shadow: 0 1px 0 #fff, 0 -1px 0 #000;

@Font-Face

For as far back as I can remember, there have always been a group of safe fonts that can be used on the web: Arial, Helvetica Georgia, Verdana, etc. This is because the majority of computers come packaged with these fonts preinstalled. Well, things are a changing. We can now begin to take advantage of various other fonts, whether installed on the readers computer or not, assuming that they can can be pulled via an online directory. Just upload the desired font to your server and pull it via the @font-face feature.

font face css3

The Code:

@font-face {
     font-family: 'Fontin-Italic';
     src: url('/fonts/Fontin-Italic.otf') format('opentype');
}

h1 { font-family: 'Fontin-Italic', Georgia, Serif; }

Warning: Here’s the problem with the whole thing. Because of copyright issues, you need to be sure that you have the rights to display and use a particular font before you go and upload it to your server and start displaying it across your site. Here’s a little more info on which fonts can be used via the @font-face feature. Please ensure that you’re staying legal.

Gradients

Here’s a cool one, you can now create CSS based gradients. This is something that I’m particularly excited about and think that it will contribute greatly to the design world. You can create something as simple as the example below or as complex as displaying radial gradient circles positioned throughout your DIV. You can even create color stops similar to what is used within Photoshop anywhere you wish. The possibilities are endless.

gradients css3

The Code:

background-image:
     -webkit-gradient(linear, 0% 0%, 0% 100%, from(#eee), to(#999));

background-image:
     -moz-linear-gradient(100% 100% 90deg, #999, #eee);

an even shorter way for Mozilla:

background-image:
     -moz-linear-gradient(bottom, #999, #eee);

Wrapping Things Up

If you choose to go ahead and start using these techniques, make sure and implement some type of fallback so that if the user’s browser does not support it, your design won’t completely fall apart. Do not expect much to happen if the user is browsing via Internet Explorer.

On a side note, several online CSS3 tools have popped up recently that allow you to generate the appropriate code along side a live demo. I recommend playing around with the online CSS3 Generator, if you are interested in getting your hands dirty. It’s a wonderful tool. A couple of more good ones are CSS3 Please and Border Radius, both of which are valuable online CSS3 generators. Have fun

Download the example:

CSS3Examples.zip – Includes the HTML, CSS and the cheesy looking staple image.

Written by Shawn Ramsey

When I’m not brewing my own beer or hiking through the local National Forest, I’m busy building a more beautiful web.

@shawnramz → / bitdrips.com →
